MRH-series |
MRH 滿足了微小角度的控制需求，上下精密軸承的配置方式，讓MRH具備良好的同軸性與連續旋轉的功能，中心通孔可依據型號不同，安裝從25.4mm至101.6mm的鏡片需求，並透過平台上方的M6及M4孔跟外部的光學機構件進行結合。
| 產品規格表 |

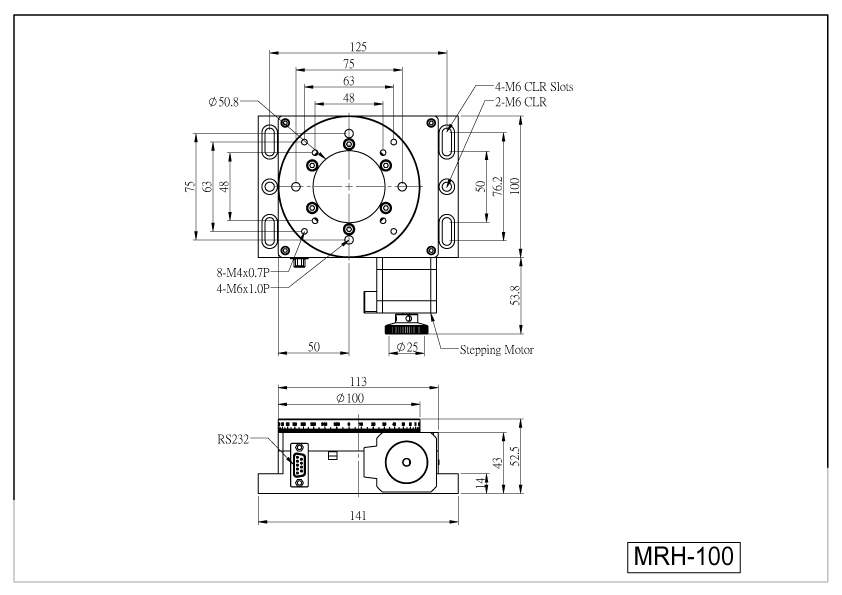

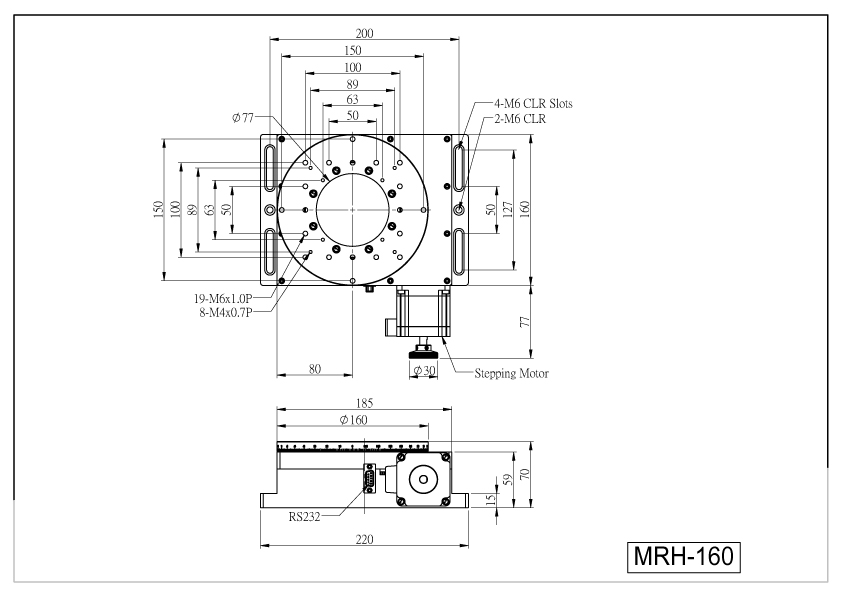

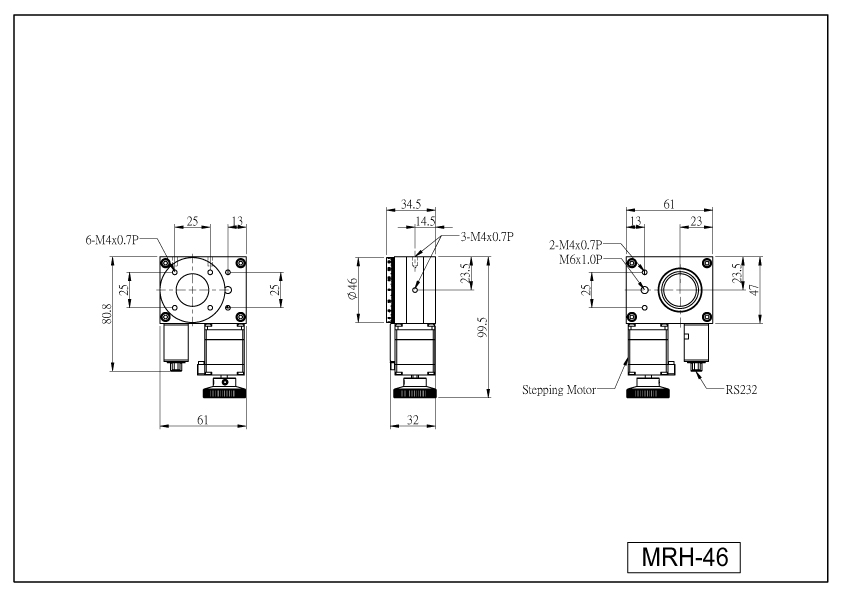

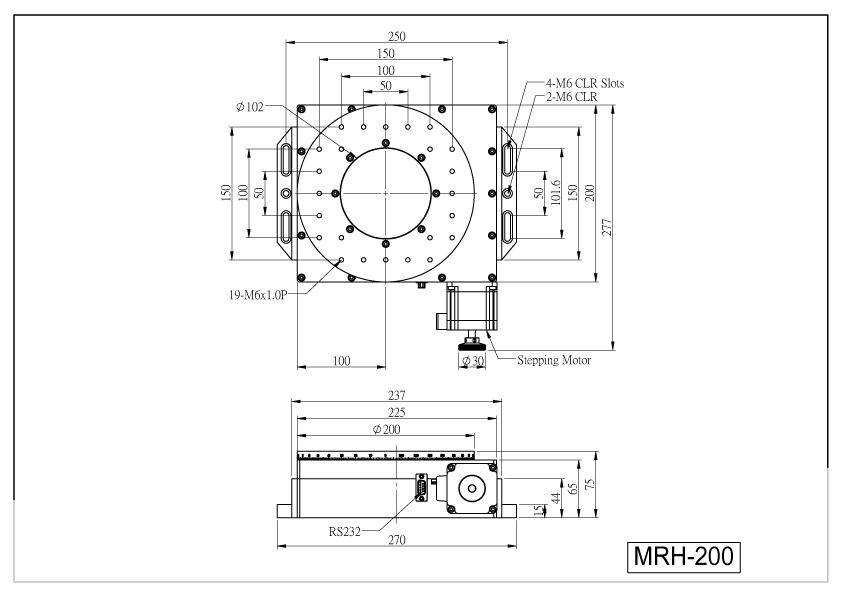

| Part Number | M-5-MRH-46 PDF | M-5-MRH-100 PDF | M-5-MRH-160 PDF | M-5-MRH-200 PDF | |
| Stage Size (mm) | Ø 46 | Ø 100 | Ø160 | Ø200 | |
| Aperture (mm) | Ø 25.4 | Ø 50.8 | Ø76.2 | Ø101.6 | |
| Reduction ratio | Worm gear(1:90) | Worm gear(1:90) | Worm gear(1:120) | Worm gear(1:180) | |
| Material | Aluminum / Copper | ||||
| Weight | 1.5Kg | 2.2Kg | 8Kg | 12Kg | |
| Resolution | (Full) [°/pulse] | 0.008 | 0.008 | 0.006 | 0.004 |
| (Half) [°/pulse] | 0.004 | 0.004 | 0.003 | 0.002 | |
| (20000) [°/pulse] |
0.0002
|
0.0002
|
0.00015
|
0.0001
|
|
| Max Speed [ ° /sec ] | 60 | 30 | 30 | 22.5 | |
| Positioning Accuracy[ ° ] | 0.1 | 0.1 | 0.1 | 0.1 | |
| Positioning Repeatability[ ° ] | + /- 0.05 | + /- 0.01 | + /- 0.01 | + /- 0.01 | |
| Load Capacity[ N ] | 49 ( 5.0 Kgf ) | 98 ( 10 Kgf ) | 196 ( 20 Kgf ) | 294 ( 30 Kgf ) | |
| Limit Sensor( - pulse direction ) | Photoelectric Sensor ( NPN ) ; CCW direction stop at near 0 degree ; CW direction to ∞ | ||||
| Origin Sensor | Photoelectric Sensor ( NPN ) | ||||
| Sensor | Volatage | DC 5V - DC 24 V | |||
| Current | 15mA or less | ||||
| Control Output | NPN Open Collector Transistor /Output DC 30V , 50mA or less | ||||
| Motor | Type | 5 - phase stepping motor | |||
| Step Angle | 0.72° | ||||
