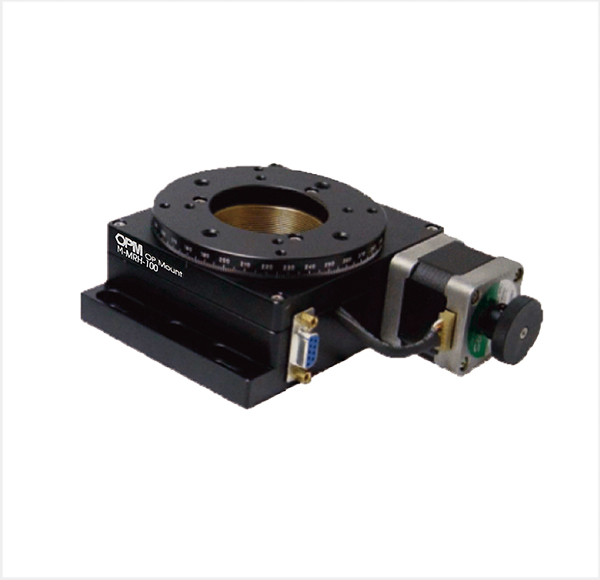

M-5-MRH-100
M-5-MRH-100
| 中空式電控旋轉台 |
|
Stage Size :
|
Ø 100 mm | ||
|
Aperture :
|
Ø 50.8 mm | ||
|
Reduction ratio :
|
Worm gear(1:90) | ||
| Motor : | 5 - phase stepping motor | ||
| 2D drawing : |
.png) |
3D STEP : |
.png) |
重量 : 2.2KG 發貨日 : Inquiry
價格:NT$42500
| Part Number | M-5-MRH-100 | |
| Stage Size (mm) | Ø 100 | |
| Aperture (mm) | Ø 50.8 | |
| Reduction ratio | Worm gear(1:90) | |
| Material | Aluminum / Copper | |
| Weight | 2.2Kg | |
| Resolution | (Full) [°/pulse] | 0.008 |
| (Half) [°/pulse] | 0.004 | |
| (20000) [°/pulse] | 0.0002 | |
| Max Speed [ ° /sec ] | 30 | |
| Positioning Accuracy[ ° ] | 0.1 | |
| Positioning Repeatability[ ° ] | + /- 0.01 | |
| Load Capacity[ N ] | 98 ( 10 Kgf ) | |
| Limit Sensor( - pulse direction ) | Photoelectric Sensor ( NPN ) ; CCW direction stop at near 0 degree ; CW direction to ∞ | |
| Origin Sensor | Photoelectric Sensor ( NPN ) | |
| Sensor | Volatage | DC 5V - DC 24 V |
| Current | 15mA or less | |
| Control Output | NPN Open Collector Transistor /Output DC 30V , 50mA or less | |
| Motor | Type | 5 - phase stepping motor |
| Step Angle | 0.72° | |
(搭配 CTC- 5 - 口 - 口 200 系列控制器)
