五相位步進馬達閉迴路控制器

各軸Pin定義

Male Description				Female Description
Pin	Description	Pin	Description	Pin	Description	Pin	Description
1	Home(output 0V NPN)	10	5 Phase Motor E (Black)	1	-	10	-
2	GND	11	-	2	-	11	-
3	Forward Limit Switch (output 0V NPN)	12	-	3	-	12	Encoder Z+
4	Reverse Limit Switch (output 0V NPN)	13	-	4	Encoder Z-	13	Encoder B+
5	Vcc +(24 VDC)	14	-	5	Encoder B-	14	Encoder A+

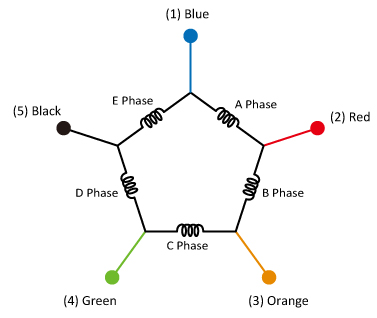

6	5 Phase Motor A (Blue)	15		6	Encoder A-	15	-
7	5 Phase Motor B (Red)			7	-		-
8	5 Phase Motor C (Orange)			8	5V		-
9	5 Phase Motor D (Green)			9	0V		-
