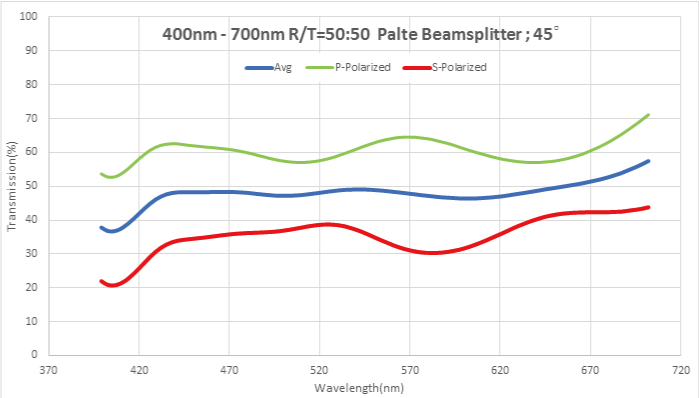

50:50 (R/T) 分光頻譜圖

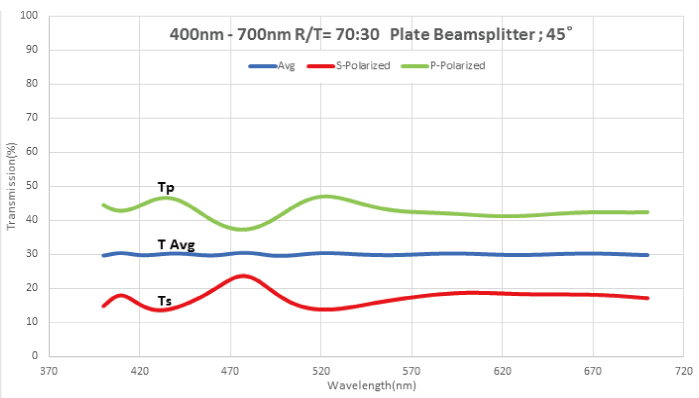

70:30 (R/T) 分光頻譜圖

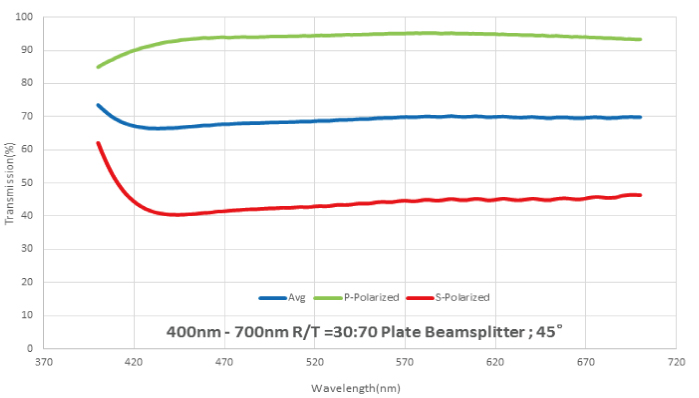

30:70 (R/T) 分光頻譜圖

Specifications

Material :	BK7
Dimension Tolerance :	+0.0/-0.2mm
Thickness Tolerance :	±0.2mm
Clear Aperture :	>90%
Parallelism :	<1 arc-min seconds
Surface Quality :	60/40
Flatness :	<λ/4@633nm per 25mm
Coating(AOI=45deg) :	S1: Partial reflectance coating
	S2: AR coating
Damage Threshold :	>1J/cm², 20ns, 20Hz, @1064nm

Click to Enlarge

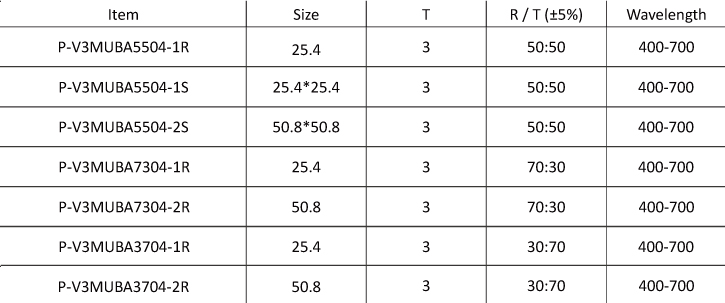

產品	型號 / 敘述	交期	單價	數量	購物車
	P-V3MUBA5504-1R Circular/Ø25.4*3.0mm/400-700nm/50:50(R/T)	Inquiry	NT$0		詢價車
	P-V3MUBA5504-2R Circular/Ø50.8*3.0mm/400-700nm/50:50(R/T)	Inquiry	NT$0		詢價車
	P-V3MUBA5504-1S Square/25.425.43.0mm/400-700nm/50:50(R/T)	Inquiry	NT$0		詢價車
	P-V3MUBA5504-2S Square/50.850.83mm/400-700nm/50:50(R/T)	Inquiry	NT$5890		購物車
	P-V3MUBA7304-1R Circular/Ø25.4*3mm/400-700nm/70:30(R/T)	Inquiry	NT$0		詢價車
	P-V3MUBA7304-2R Circular/Ø50.8*3.0mm/400-700nm/70:30(R/T)	Inquiry	NT$0		詢價車
	P-V3MUBA3704-1R Circular/Ø25.4*3.0mm/400-700nm/30:70(R/T)	Inquiry	NT$0		詢價車
	P-V3MUBA3704-2R Circular/Ø50.8*3.0mm/400-700nm/30:70(R/T)	Inquiry	NT$0		詢價車
