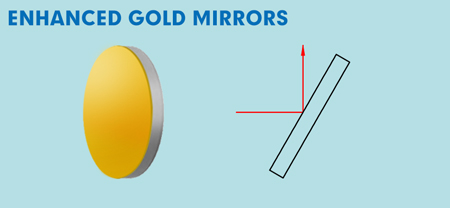

Enhanced Gold Mirrors鍍金膜反射鏡
|
• Material :
|
BK7
|
|
• Dimension Tolerance :
|
+0.0/-0.2mm
|
|
• Thickness Tolerance :
|
±0.2mm
|
|
• Clear Aperture :
|
>90%
|
|
• Flatness :
|

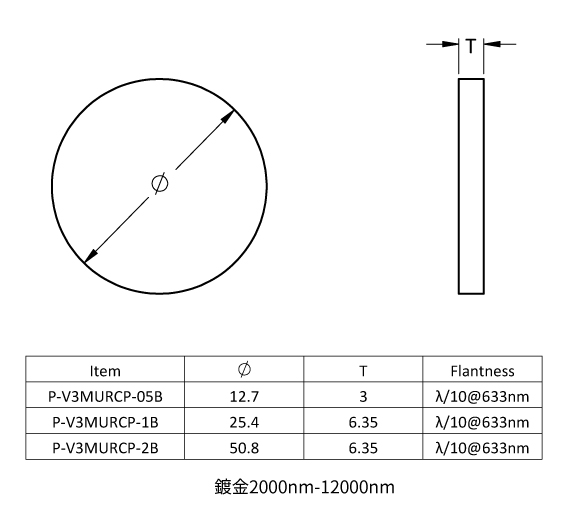

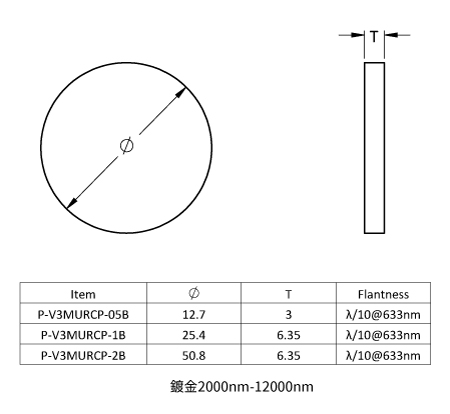

Refer to below list
|
|
• Surface Quality :
|
60/40 scratch and dig
|
| • Coating : | |
|

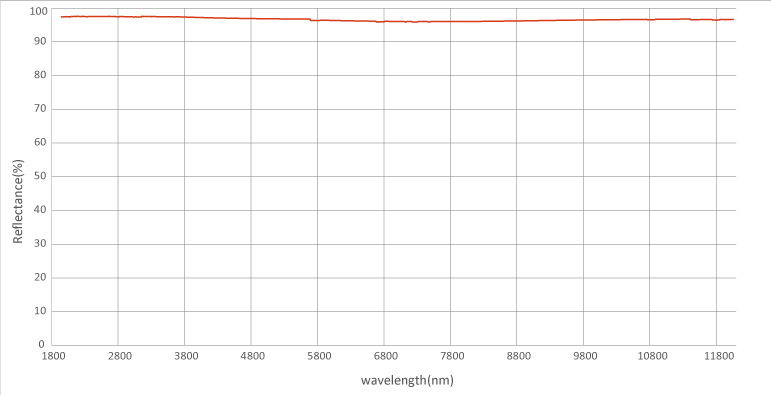

Metal coating on one surface, rear surface ground or inspection polished Protected Gold: Ravg>98%@2000-12000nm
|
|
| • Damage Threshold : | >1J/cm2, 20ns, 20Hz, @1064nm |
