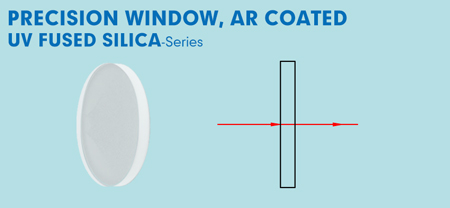

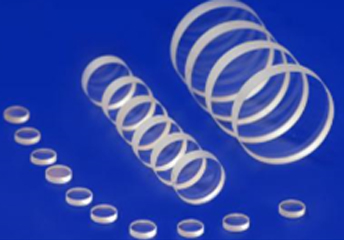

Precision Window,AR Coated 石英鍍膜圓形窗口鏡
| 鍍膜 | 紫外熔石英 |
• 鍍膜特性：R<0.25%，0度入射
| Specifications |
|
Material
|
Fused silica
|
|
Dimension Tolerance
|
+0.0/-0.2mm
|
|
Thickness Tolerance
|
±0.2mm
|
|
Clear Aperture
|
>90%
|
|
Parallelism
|
<30 arc seconds
|
|
Surface Quality
|
60/40
|
|
Wavefront Distortion
|
<λ/8@633nm per 25mm
|
|
Damage Threshold
|
UVFS: >10J/cm2,20ns,20Hz,@1064nm |
| 產品 | 型號 / 敘述 | 交期 | 單價 | 數量. | 購物車 |
