VCR-HT

• 2-in-1 card - Reflective & Transmissive (see laser from back side)

• High sensitivity down to uW/cm² level in dark

• Large active region up to 85.5 mm x 54 mm

• Edge-to-edge design for easy alignment

• Durable and portable ISO standard PVC card

• Wide wavelength coverage from 800 to 1600 nm

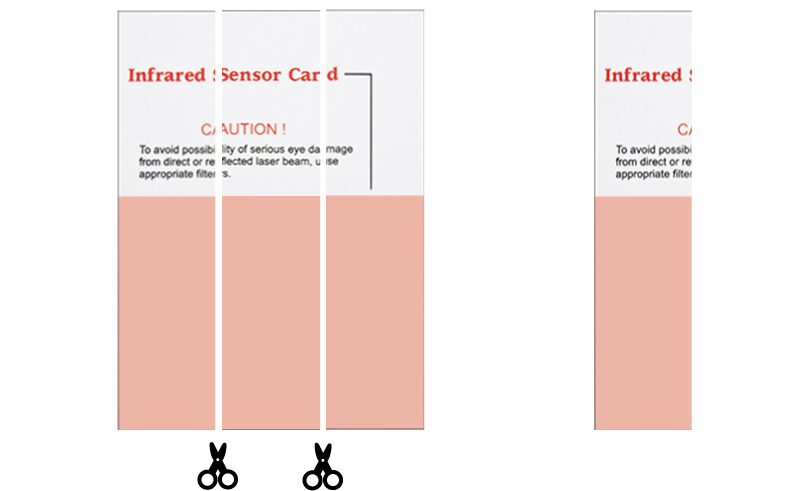

• Could be cut into small pieces for use as showed left

Specification

Sensing Wavelength Range

800~1600nm

Emission Wavelength Range

520~670nm

Physical Dimension

86 mm x 54 mm

Active Region

42 mm x 54 mm(transmissive)

43.5mm x 54 mm(reflective)

Substrate Material

ISO standard PVC card

產品	型號 / 敘述	交期	單價	數量.	購物車
	VCR-HT 雷射卡/激發範圍800-1600nm，特別是在950,980,1064,1500nm / 兼具穿透反射性能	In Stock	NT$4200		加入購物車
