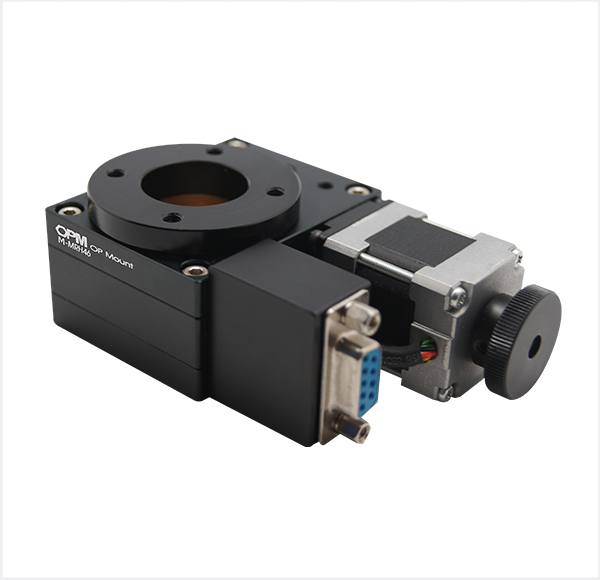

M-2-MRH-46
M-2-MRH-46
| 中空式電控旋轉台 |
|
Stage Size :
|
Ø 46 mm | ||
|
Aperture :
|
Ø 25.4 mm | ||
|
Reduction ratio :
|
Worm gear(1:90) | ||
| Motor : | 2 - phase stepping motor | ||
| 2D drawing : |
.png) |
3D STEP : |
.png) |
重量 : 1.5KG 發貨日 : Inquiry
價格:NT$26000
| Part Number | M-2-MRH-46 | |
| Stage Size (mm) | Ø 46 | |
| Aperture (mm) | Ø 25.4 | |
| Reduction ratio | Worm gear(1:90) | |
| Material | Aluminum / Copper | |
| Weight | 1.5Kg | |
| Resolution | (Full) [°/pulse] | 0.02 |
| (Half) [°/pulse] | 0.01 | |
| (20000) [°/pulse] | 0.0002 | |
| Max Speed [ ° /sec ] | 60 | |
| Positioning Accuracy[ ° ] | 0.1 | |
| Positioning Repeatability[ ° ] | + /- 0.05 | |
| Load Capacity[ N ] | 49 ( 5.0 Kgf ) | |
| Limit Sensor( - pulse direction ) | Photoelectric Sensor ( NPN ) ; CCW direction stop at near 0 degree ; CW direction to ∞ | |
| Origin Sensor | Photoelectric Sensor ( NPN ) | |
| Sensor | Volatage | DC 5V - DC 24 V |
| Current | 15mA or less | |
| Control Output | NPN Open Collector Transistor /Output DC 30V , 50mA or less | |
| Motor | Type | 2 - phase stepping motor |
| Step Angle | 1.8 ° | |
(搭配 CTC-2 - 口 - 口 200 系列控制器)
您可以透過Line官方與我們做即時交談，也可以來電或Mail聯繫我們。
點選或按一下此按鍵後，即可將帳號加入好友。
| 9 Pin (Female) | |||
| 1 | Home(output 0V NPN) | 6 | B+ Motor |
| 2 | 0V | 7 | B- Motor |
| 3 | None | 8 | A- Motor |
| 4 | None | 9 | A+ Motor |
| 5 | Vcc+ | ||
