3-15H
3-15H

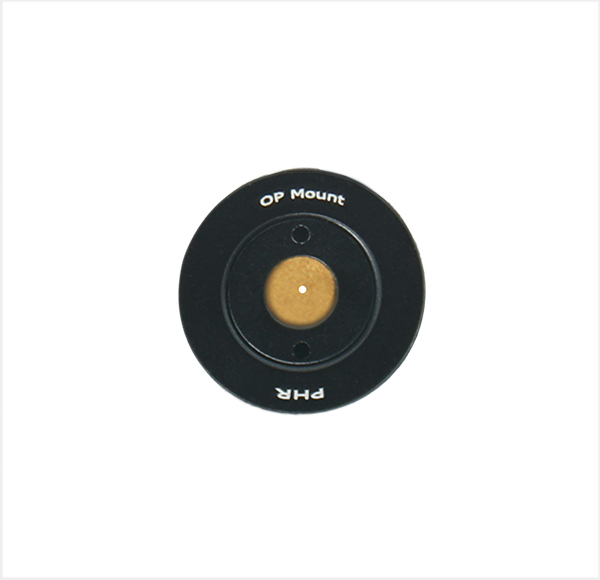

| 有外框式高能精密針孔 15um |
| 型號 : | 3-15H | ||
|
針孔尺寸:
|
15um
|
||
|
孔徑誤差 :
|
±1.5um
|
||
|
外框外徑 :
|
25.4mm
|
||
|
針孔厚度 :
|
25um
|
||
| 外框厚度: | 4.1mm | ||
| 外框材質: |
6061-T6 Aluminum
|
||
|
針孔材質 :
|
Copper,Gold plated one side,
PVD Black Coating on other Side
|
||
| 2D drawing下載 : |
.png) |
3D STEP 下載 : |
.png) |
重量 : 0.01KG 發貨日 : In Stock
價格:NT$4840
| 型 號 | 針孔尺寸 | 孔徑誤差 | 外框外徑 | 針孔厚度 | 外框厚度 | 外框材質 | 針孔材質 |
| 3-5H | 5um | ±1.0um | 25.4mm | 25um | 4.1mm | 6061-T6 Aluminum |
Copper Gold plated one side, PVD Black Coating on other Side |
| 3-10H | 10um | ±1.0um | 25.4mm | 25um | 4.1mm | 6061-T6 Aluminum |
Copper Gold plated one side, PVD Black Coating on other Side |
| 3-15H | 15um | ±1.5um | 25.4mm | 25um | 4.1mm | 6061-T6 Aluminum |
Copper Gold plated one side, PVD Black Coating on other Side |
| 3-25H | 25um | ±2.0um | 25.4mm | 25um | 4.1mm | 6061-T6 Aluminum |
Copper Gold plated one side, PVD Black Coating on other Side |
| 3-50H | 50um | ±3.0um | 25.4mm | 25um | 4.1mm | 6061-T6 Aluminum |
Copper Gold plated one side, PVD Black Coating on other Side |
