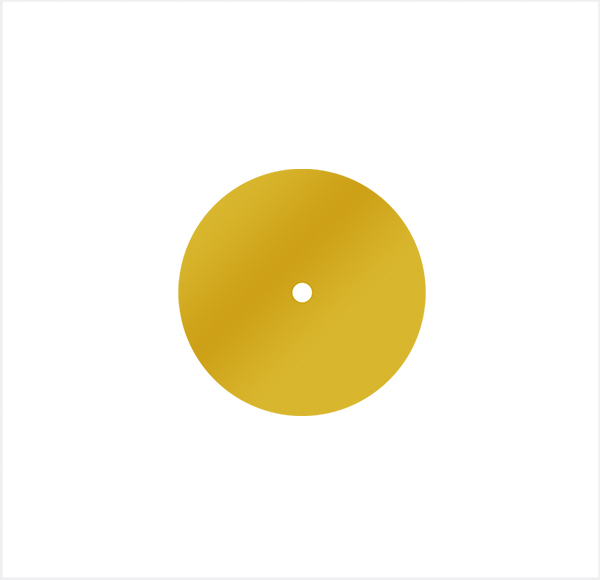

3-25
3-25
| 單片式高能精密針孔 25um |
| 型號 : | 3-25 |
|
針孔尺寸:
|
25um
|
|
孔徑誤差 :
|
±2.0um
|
|
外徑 :
|
9.53mm
|
|
針孔厚度 :
|
25um
|
|
針孔材質 :
|
Copper
Gold plated one side,
PVD Black Coating on other Side
|
| 2D drawing下載 : |
.png) |
重量 : 0.01KG 發貨日 : In Stock
價格:NT$3300
| 型 號 | 針孔尺寸 | 孔徑誤差 | 外 徑 | 針孔厚度 | 針孔材質 | ||
| 3-5 | 5um | ±1.0um | 9.53mm | 25um |
Copper Gold plated one side,PVD Black Coating on other Side |
||
| 3-10 | 10um | ±1.0um | 9.53mm | 25um |
Copper Gold plated one side,PVD Black Coating on other Side |
||
| 3-15 | 15um | ±1.5um | 9.53mm | 25um |
Copper Gold plated one side,PVD Black Coating on other Side |
||
| 3-25 | 25um | ±2.0um | 9.53mm | 25um |
Copper Gold plated one side,PVD Black Coating on other Side |
||
| 3-50 | 50um | ±3.0um | 9.53mm | 25um |
Copper Gold plated one side,PVD Black Coating on other Side |
||
|
No.1 |
3-X |
