1-40
1-40

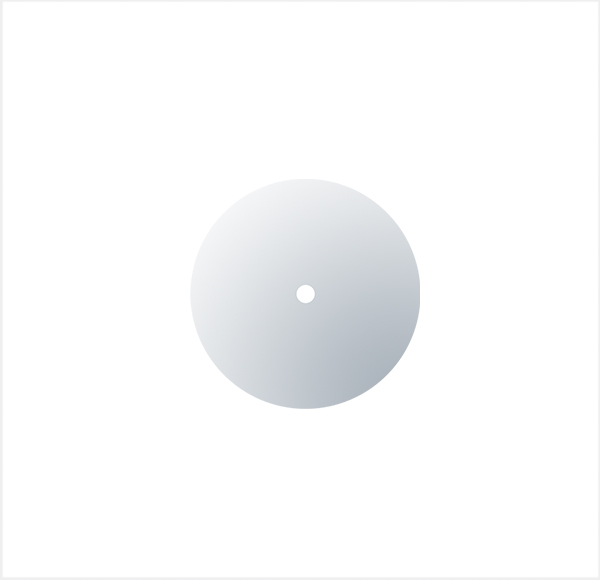

| 單片式標準精密針孔 40um |
| 型號 : | 1-40 |
|
針孔尺寸:
|
40um
|
|
孔徑誤差 :
|
±3.0um
|
|
外徑 :
|
9.53mm
|
|
針孔厚度 :
|
12.7um
|
|
針孔材質 :
|
300 Series Stainless Steel
|
.png) |
重量 : 0.01KG 發貨日 : In Stock
價格:NT$1540
| 型 號 | 針孔尺寸 | 孔徑誤差 | 外 徑 | 針孔厚度 | 針孔材質 | ||
| 1-2 | 2um | ±0.5um | 9.53mm | 127um | ※A 300 Series Stainless Steel +(BeCu or Ni) | ||
| 1-5 | 5um | ±1.0um | 9.53mm | 12.7um | 300 Series Stainless Steel | ||
| 1-10 | 10um | ±1.0um | 9.53mm | 12.7um | 300 Series Stainless Steel | ||
| 1-15 | 15um | ±1.5um | 9.53mm | 12.7um | 300 Series Stainless Steel | ||
| 1-20 | 20um | ±2.0um | 9.53mm | 12.7um | 300 Series Stainless Steel | ||
| 1-25 | 25um | ±2.0um | 9.53mm | 12.7um | 300 Series Stainless Steel | ||
| 1-35 | 35um | ±2.0um | 9.53mm | 12.7um | 300 Series Stainless Steel | ||
| 1-40 | 40um | ±3.0um | 9.53mm | 12.7um | 300 Series Stainless Steel | ||
| 1-50 | 50um | ±3.0um | 9.53mm | 12.7um | 300 Series Stainless Steel | ||
| 1-75 | 75um | ±3.0um | 9.53mm | 12.7um | 300 Series Stainless Steel | ||
| 1-100 | 100um | ±4.0um | 9.53mm | 12.7um | 300 Series Stainless Steel | ||
※A :1-2 & 1-2H不鏽鋼針孔雙面會增加鎳(銀色)或鈹銅(金色) 整體厚度為 127um,不銹鋼厚度為12.7um
|
