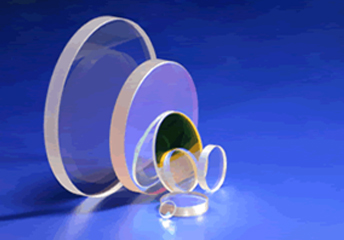

激光保护窗口


对于更高的安全性,激光保护窗口主要用于在激光切割中阻挡杂物飞溅,防止飞溅物损伤镜头。两面镀上高损伤阈值(> 15J / cm2)的增透膜来减少反射。

• 两面镀高损伤阈值的增透膜
• 单面剩余反射率R <0.5 %@1047-1064nm,入射角0度
• 损伤阈值> 15J / cm2,20ns,20Hz,@ 1064nm

Specifications
Material Fused Silica
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >80%
Parallelism <1 arc minute
Surface Quality 60/40 scratch and dig
Transmitted Wavefront Distortion <λ@633nm per 25mm
Chamfer <0.5mmx45deg
Coating Both sides AR coated for YAG laser, R<0.5%@1047-1064nm per surface, AOI 0deg, damage threshold >15J/cm2, 20ns, 20Hz, @1064nm




规格/叙述 交货日期 单价 数量 购物车
P-V3MUWL13-08A

Ø20.0*3mm / 1047-1064 nm

3 weeks
RMB¥990.00
P-V3MUWL14-1A

Ø25.4*4mm / 1047-1064 nm

3 weeks
RMB¥1080.00
P-V3MUWL16-1.2A

Ø30.0*6mm / 1047-1064 nm

3 weeks
RMB¥1260.00
P-V3MUWL13-1.5A

Ø38.0*3mm / 1047-1064 nm

3 weeks
RMB¥1260.00
P-V3MUWL13-2A

Ø50.0*3mm / 1047-1064 nm

3 weeks
RMB¥1350.00
