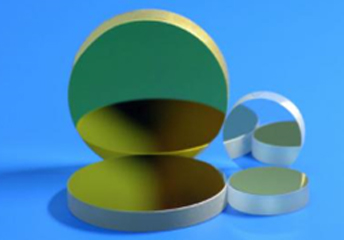

镀银膜反射镜


受保护的银在整个可见光和近红外范围内提供比铝更高的反射率。由于它们在450 nm-12μm范围内的高反射率,这些反射镜非常适合与飞秒脉冲激光器一起使用。

•一面镀金属反射膜,反面细磨或检测抛光
•保护银:Ravg> 95%@ 450-12000nm
•符合RoHS
Specifications
Material BK7
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Flatness Refer to below list
Surface Quality 60/40 scratch and dig
Coating Metal coating on one surface, rear surface ground or inspection polished
Protected Silver: Ravg>95%@400-12000nm
Damage Threshold >1J/cm2, 20ns, 20Hz, @1064nm




规格/叙述 交货日期 单价 数量 购物车
P-V3MURBP-05B

Ø12.7mm / T=3mm / Flatness=/10 @633nm

3 weeks
RMB¥300.00
P-V3MURBP-1B

Ø25.4mm / T=6.35mm / Flatness=/10 @633nm

3 weeks
RMB¥300.00
P-V3MURBP-2B

Ø50.8mm / T=6.35mm / Flatness=/10 @633nm

3 weeks
RMB¥660.00
