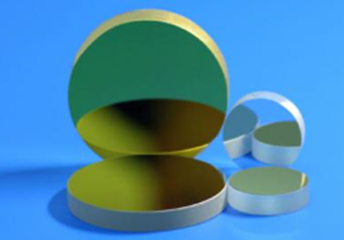

镀铝膜反射镜


增強铝是VIS应用的经济解决方案。保护铝涂层反射镜是许多一般宽带应用的一个很好的选择。


• 一面镀金属反射膜,反面细磨或检测抛光

• 增强铝:Ravg> 90%@ 400-700nm

• 符合RoHS

Specifications
Material BK7
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Flatness Refer to below list
Surface Quality 60/40 scratch and dig
Coating Metal coating on one surface, rear surface ground or inspection polished
Enhanced Aluminum: Ravg>90%@400-700nm
Damage Threshold >1J/cm2, 20ns, 20Hz, @1064nm




规格/叙述 交货日期 单价 数量 购物车
P-V3MURAP-05B

Ø12.7mm / T=3mm / Flatness=/10 @633nm

3 weeks
RMB¥285.00
P-V3MURAP-1B

Ø25.4mm / T=6.35mm / Flatness=/10 @633nm

3 weeks
RMB¥330.00
P-V3MURAP-2B

Ø50.8mm / T=6.35mm / Flatness=/10 @633nm

3 weeks
RMB¥720.00
