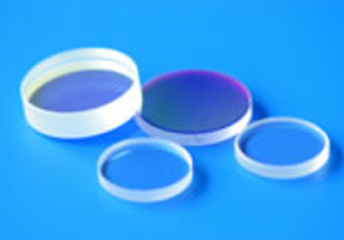

激光波长介质高反镜


激光波长介质高反射在特定波长和特定入射角下提供优化的性能,这些多层涂层堆叠有助于在正常或45度入射下在特定激光线波长处实现最高可能的反射率。
其他使用波段请点选这里

•高反射率,R> 99.5%
•高损伤阈值,适用于高功率
•符合RoHS

Specifications
Material BK7
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Flatness λ/[email protected] per 25mm range
Surface Quality 60/40 scratch and dig
Coating Dielectric HR coating on one surface, R>99.5% for random polarization, rear surface ground or inspection polished
Damage Threshold >5J/cm2, 20ns, 20Hz, @1064nm




规格/叙述 交货日期 单价 数量 购物车
P-V3MURL0-6-05B

Ø12.7mm / AOI=゚ / 633-660nm

3 weeks
RMB¥225.00
P-V3MURL0-6-08B

Ø20mm / AOI=゚ / 633-660nm

3 weeks
RMB¥240.00
P-V3MURL0-6-1B

Ø25.4mm / AOI=゚ / 633-660nm

3 weeks
RMB¥270.00
P-V3MURL0-6-2B

Ø50.8mm / AOI=゚ / 633-660nm

3 weeks
RMB¥675.00
P-V3MURL45-6-05B

Ø12.7mm / AOI=45゚ / 633-660nm

3 weeks
RMB¥225.00
P-V3MURL45-6-08B

Ø20mm / AOI=45゚/ 633-660nm

3 weeks
RMB¥240.00
P-V3MURL456-6-1B

Ø25.4mm / AOI=45゚ / 633-660nm

3 weeks
RMB¥270.00
P-V3MURL45-6-2B

Ø50.8mm / AOI=45゚ / 633-660nm

3 weeks
RMB¥675.00
