M-5-MRH-160
M-5-MRH-160

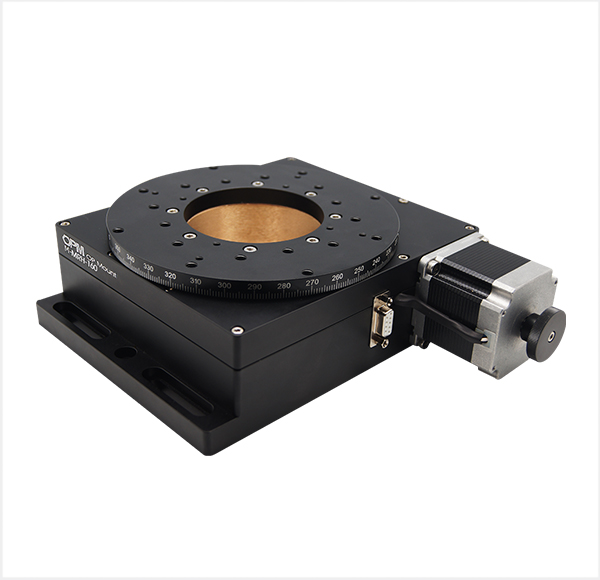

| 中空式电控旋转台 |
|
Stage Size :
|
Ø 160 mm | ||
|
Aperture :
|
Ø 76.2 mm | ||
|
Reduction ratio :
|
Worm gear(1:120) | ||
| Motor : | 5 - phase stepping motor | ||
| 2D drawing : |
.png) |
3D STEP : |
.png) |
重量 : 8KG 发货日 : Inquiry
特价 :$-
| Part Number | M-5-MRH-160 | |
| Stage Size (mm) | Ø160 | |
| Aperture (mm) | Ø76.2 | |
| Reduction ratio | Worm gear(1:120) | |
| Material | Aluminum / Copper | |
| Weight | 8Kg | |
| Resolution | (Full) [°/pulse] | 0.006 |
| (Half) [°/pulse] | 0.003 | |
| (20000) [°/pulse] | 0.00015 | |
| Max Speed [ ° /sec ] | 30 | |
| Positioning Accuracy[ ° ] | 0.1 | |
| Positioning Repeatability[ ° ] | + /- 0.01 | |
| Load Capacity[ N ] | 196 ( 20 Kgf ) | |
| Limit Sensor( - pulse direction ) | Photoelectric Sensor ( NPN ) ; CCW direction stop at near 0 degree ; CW direction to ∞ | |
| Origin Sensor | Photoelectric Sensor ( NPN ) | |
| Sensor | Volatage | DC 5V - DC 24 V |
| Current | 15mA or less | |
| Control Output | NPN Open Collector Transistor /Output DC 30V , 50mA or less | |
| Motor | Type | 5 - phase stepping motor |
| Step Angle | 0.72° | |
(搭配 CTC- 5 - 口 - 口 200 系列控制器)
